Cassoni Recirculation Warehouse

Pallet and Box Recirculation Warehouse

Since the robots were born that pick up directly from the box in bulk, the need arises to standardize the transport of pallets and boxes.

In the AP standard the dimensions for caissons have been foreseen from:

600x600mm Maximum full weight 1000kg 800x600mm Maximum full weight 1500kg 800x800mm Maximum full weight 2000kg Minimum travel in stroke Y = 1300mm

Euro Pallet Dimensions:

800x800mm Full weight maximum 2500kg1000x800mm Full weight maximum 2500kg1000x1200mm Full weight maximum 2500kg

Richiedi i file in 3d, Step, Iges, Parasolid, Solid Work 2018.

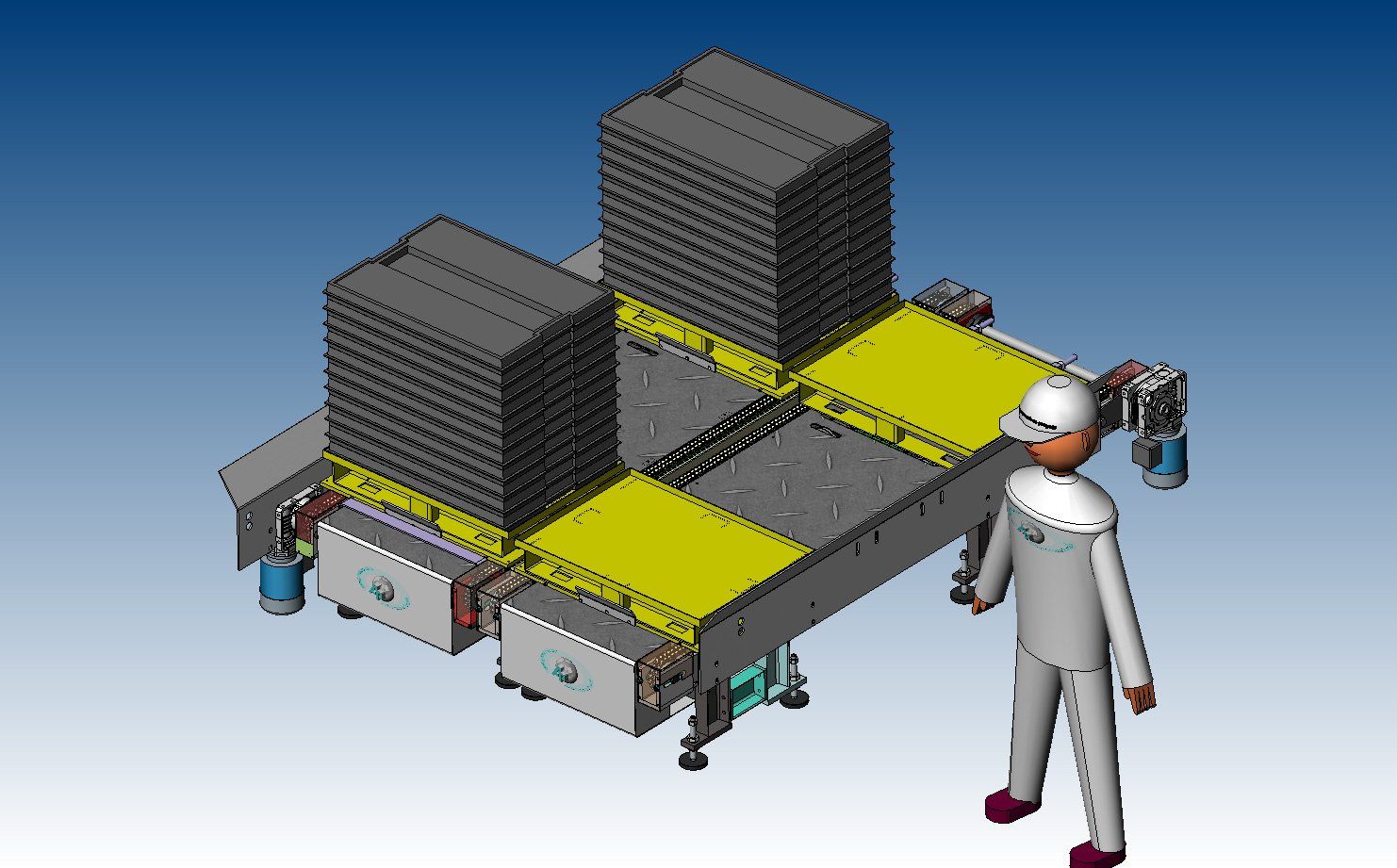

Warehouse for Pallet or Box recirculation

Fill in the fields, and in the message indicate:

Box or Pallet dimensions in mm X x Y x Height Max weight Box or Full Pallet Weight Empty box Desired Y stroke

The quote will be sent as soon as possible
